Rokas palešu ratiņi 2,2t

122 mm
2200 kg

Ergonomisks un no abām pusēm vadāms vadības elements
Optimizēta hidraulika mazākai piepūlei
Ilgmūžīgi, pateicoties izturīgiem materiāliem un to apstrādei
Nav jāveic apkope, jo savienojumi ir ieeļļoti uz visu to kalpošanas laiku
Speciāls nolaišanas vārsts īpaši vienmērīgai nolaišanai

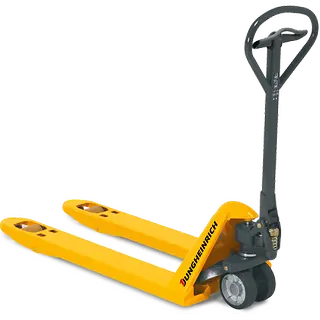

AM 22

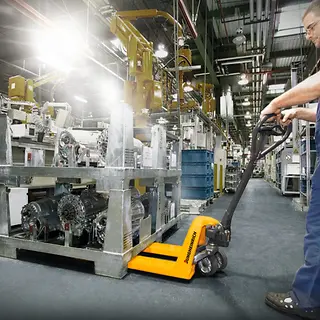

Izturīgie un uzticamie rokas palešu ratiņi AM 22 ir Jungheinrich klasiķi un ir ideāli piemēroti preču ikdienas transportēšanai īsās distancēs. Tie ir īpaši viegli apkalpojami ar ergonomisku vadības elementu, kuru no abām pusēm var vadīt tikai ar vienu roku. Optimāli saskaņotā hidraulika apvienojumā ar hromētām riteņu un šarnīru buksēm sniedz iespēju kravu pārvietot ar minimālu piepūli. Tas ļauj strādāt īpaši ergonomiski un tādējādi palielina drošību Jūsu uzņēmumā. Šo rokas palešu ratiņu pieejamību nodrošina ilgmūžīgi ieeļļoti savienojumi un sūkņa hidraulika ar speciālu nolaišanas vārstu, kam nav jāveic apkope. Turklāt konstrukcijā izmantotais, augstvērtīgais tērauds un metinātais dīseles stiprinājums nodrošina AM 22 ilgmūžību. Drošai un vienkāršai preču transportēšanai ikvienā situācijā.

Opcijas

Efektīvi kraušanas darbi

Gan kreiļiem, gan labročiem vienlīdz piemērots, viegli vadāms vadības elements.
Īpaši precīza un kontrolēta kravas nolaišana, pateicoties speciālam nolaišanas vārstam.
Eiropalešu pacelšana no zemes, veicot tikai 3 sūkņa gājienus, ko nodrošina pēc izvēles pieejamā ātrās pacelšanas funkcija (līdz 120 kg).
Maksimālais celšanas augstums tiek sasniegts, veicot tikai 5 sūkņa gājienus.
Uzlabotā hidrauliskā sistēma samazina nepieciešamo sūkņa spēku.
Nepieciešamo vilces spēku samazina riteņu bukses.

Drošs un manevrētspējīgs

Droša un viegla izmantojamība arī visšaurākajos apstākļos, pateicoties tikai 373 mm priekšējās konstrukcijas garumam.
Šķērseniskas palešu uzņemšanas gadījumā ieštancētais marķējums norāda precīzu, drošu paletes novietojumu.

Maksimāla stabilitāte un ilgmūžība

Stabilas dakšas un kompakta forma.
Metināts dīseles turētājs.
Aizsargāti priekšējie kravas riteņi.
Rūdīts tērauds.

Vienmērīga gaita un izturība

Īpaši vienmērīga gaita un ilgmūžība, pateicoties hromētām riteņu un šarnīru buksēm.
Ļoti labas gaitas īpašības arī bez savienojumu eļļošanas.

Individuāls aprīkojums

Vairāki dakšu garumi un dažādi dakšu izmēri.
Dažādas bremžu sistēmas vai speciāls krāsojums.
Speciāls aprīkojums, piemēram, nerūsējošā tērauda vai cinkoti iekrāvēju varianti.

Modeļu pārskats

Model	Celtspēja	Celšanas augstums (h3)	Braukšanas ātrums	Kopējais garums
AM 22, 520x600, N-GN, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, N-GN, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, N-GN, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, N-GN, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x1054, N-GN, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, N-GN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, N-GN, NH	2 200 kg	122 mm	-	1 523 mm
AM 22, 520x600, C-GN, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, C-GN, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, C-GN, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, C-GN, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, C-GN, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, C-GN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, C-GN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x600, C-GV, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, C-GV, NH	2 200 kg	122 mm	0 km/h	1 165 mm
AM 22, 520x902, C-GV, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, C-GV, NH	2 200 kg	122 mm	0 km/h	1 320 mm
AM 22, 520x1054, C-GV, NH	2 200 kg	122 mm	0 km/h	1 424 mm
AM 22, 520x1150, C-GV, NH	2 200 kg	122 mm	0 km/h	1 520 mm
AM 22, 520x1207, C-GV, NH	2 200 kg	122 mm	0 km/h	1 577 mm
AM 22, 520x600, V-GV, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, V-GV, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x902, V-GV, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, V-GV, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, V-GV, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, V-GV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, V-GV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x600, N-BN, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, N-BN, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, N-BN, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x950, N-BN, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, N-BN, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, N-BN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, N-BN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x600, C-BN, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, C-BN, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, C-BN, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, C-BN, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, C-BN, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, C-BN, NH	2 200 kg	122 mm	0 km/h	1 520 mm
AM 22, 520x1207, C-BN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x600, C-BV, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, C-BV, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, C-BV, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, C-BV, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, C-BV, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, C-BV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, C-BV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1360, C-BV, NH	2 200 kg	122 mm	0 km/h	1 733 mm
AM 22, 520x1600, C-BV, NH	1 500 kg	122 mm	0 km/h	1 973 mm
AM 22, 520x1900, C-BV, NH	1 000 kg	122 mm	0 km/h	2 273 mm
AM 22, 520x2400, C-BV, NH	500 kg	122 mm	0 km/h	2 773 mm
AM 22, 520x600, V-BV, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, V-BV, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, V-BV, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, V-BV, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, V-BV, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, V-BV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, V-BV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, N-GN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, N-GN, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, N-GN, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, N-GN, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, N-GN, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, N-GN, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, N-GN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, C-GN, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, C-GN, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x902, C-GN, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, C-GN, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, C-GN, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, C-GN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, C-GN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, C-GV, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, C-GV, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, C-GV, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, C-GV, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, C-GV, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, C-GV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, C-GV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, V-GV, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, V-GV, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, V-GV, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, V-GV, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, V-GV, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, V-GV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, V-GV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, N-BN, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, N-BN, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, N-BN, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, N-BN, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, N-BN, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, N-BN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, N-BN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, C-BN, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, C-BN, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, C-BN, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, C-BN, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, C-BN, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, C-BN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, C-BN, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, C-BV, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, C-BV, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x902, C-BV, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, C-BV, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, C-BV, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x1150, C-BV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, C-BV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1360, C-BV, NH	2 200 kg	122 mm	0 km/h	1 733 mm
AM 22, 680x1600, C-BV, NH	1 700 kg	122 mm	0 km/h	1 973 mm
AM 22, 680x1900, C-BV, NH	1 200 kg	122 mm	0 km/h	2 773 mm
AM 22, 680x600, V-BV, NH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, V-BV, NH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, V-BV, NH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, V-BV, NH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, V-BV, NH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, V-BV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, V-BV, NH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x600, N-GN, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, N-GN, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, N-GN, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, N-GN, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, N-GN, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, N-GN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, N-GN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x600, C-GN, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, C-GN, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, C-GN, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, C-GN, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, C-GN, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, C-GN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, C-GN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x600, C-GV, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, C-GV, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, C-GV, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, C-GV, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, C-GV, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, C-GV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, C-GV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x600, V-GV, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, V-GV, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, V-GV, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x950, V-GV, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, V-GV, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, V-GV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, V-GV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x600, N-BN, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, N-BN, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, N-BN, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, N-BN, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, N-BN, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, N-BN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, N-BN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x600, C-BN, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, C-BN, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, C-BN, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, C-BN, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, C-BN, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, C-BN, SH	2 200 kg	122 mm	0 km/h	1 520 mm
AM 22, 520x1207, C-BN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x600, C-BV, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, C-BV, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, C-BV, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, C-BV, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, C-BV, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, C-BV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, C-BV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1360, C-BV, SH	2 200 kg	122 mm	0 km/h	1 733 mm
AM 22, 520x1600, C-BV, SH	1 500 kg	122 mm	0 km/h	1 973 mm
AM 22, 520x1900, C-BV, SH	1 000 kg	122 mm	0 km/h	2 273 mm
AM 22, 520x2400, C-BV, SH	500 kg	122 mm	0 km/h	2 773 mm
AM 22, 520x600, V-BV, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 520x795, V-BV, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 520x902, V-BV, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 520x950, V-BV, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 520x1054, V-BV, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 520x1150, V-BV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 520x1207, V-BV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, N-GN, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, N-GN, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, N-GN, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, N-GN, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, N-GN, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, N-GN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, N-GN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, C-GN, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, C-GN, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, C-GN, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, C-GN, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, C-GN, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x1150, C-GN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, C-GN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, C-GV, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, C-GV, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, C-GV, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x950, C-GV, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, C-GV, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, C-GV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, C-GV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, V-GV, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, V-GV, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, V-GV, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x950, V-GV, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, V-GV, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, V-GV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, V-GV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, N-BN, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, N-BN, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, N-BN, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x950, N-BN, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, N-BN, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, N-BN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, N-BN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, C-BN, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, C-BN, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, C-BN, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, C-BN, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, C-BN, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, C-BN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, C-BN, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x600, C-BV, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, C-BV, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, C-BV, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, C-BV, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, C-BV, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, C-BV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, C-BV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1360, C-BV, SH	2 200 kg	122 mm	0 km/h	1 733 mm
AM 22, 680x1600, C-BV, SH	1 700 kg	122 mm	0 km/h	1 973 mm
AM 22, 680x1900, C-BV, SH	1 200 kg	122 mm	0 km/h	2 273 mm
AM 22, 680x600, V-BV, SH	2 200 kg	122 mm	0 km/h	973 mm
AM 22, 680x795, V-BV, SH	2 200 kg	122 mm	0 km/h	1 168 mm
AM 22, 680x902, V-BV, SH	2 200 kg	122 mm	0 km/h	1 275 mm
AM 22, 680x950, V-BV, SH	2 200 kg	122 mm	0 km/h	1 323 mm
AM 22, 680x1054, V-BV, SH	2 200 kg	122 mm	0 km/h	1 427 mm
AM 22, 680x1150, V-BV, SH	2 200 kg	122 mm	0 km/h	1 523 mm
AM 22, 680x1207, V-BV, SH	2 200 kg	122 mm	0 km/h	1 523 mm

Lejupielādes

Klienta ieguvumi AM 22 SH / NH pdf (2,6 MB)

Tehniskie dati AM 22 SH / NH pdf (1,7 MB)
